Unity

How do I access the live audio feed?#

Sometimes, for example if you want to do lip-syncing or if you want to add an graphical equalizer representing the audio coming from ODIN, you need to get access to the AudioSource and AudioClipfrom ODIN.

This is how you can get access to those information. Somewhere in your code, you attach the ODIN playback component representing a user to the game object using the function OdinHandler.Instance.AddPlaybackComponent. This will return an instance of PlaybackComponent. Use this component to get access to the AudioClip:

Playback = gameObject.GetComponent<PlaybackComponent>();
AudioSource source = Playback.PlaybackSource;
AudioClip clip = Playback.PlaybackSource.clip;

What is UserData?#

Every peer (i.e. player) connected to ODIN has it’s own user data. Within ODIN, this is just a byte array that you can use for everything. We provide a class that provides basic user data as a JSON object. CustomUserDataJsonFormat exposes that interface and provides convenience functions for serialization.

You can set the user data before joining a room or you can also update the user data afterwards:

// Generate a JSON User Data object with the players netId and name in the network
CustomUserDataJsonFormat userData = new CustomUserDataJsonFormat(name, "online");
userData.seed = netId.ToString();

// Join ODIN Room ShooterSample and send user data
OdinHandler.Instance.JoinRoom("ShooterSample", userData.ToUserData());

The method ToUserData serializes the data stored in the CustomUserDataJsonFormat instance to a JSON string and FromUserData will take the serialized JSON string and return an instance of CustomUserDataJsonFormat as shown in this code snippet:

public void OnMediaRemoved(object sender, MediaRemovedEventArgs eventArgs)
{
    OdinUserData userData = OdinUserData.FromUserData(eventArgs.Peer.UserData);
    PlayerScript player = GetPlayerForOdinPeer(userData);
    if (player)
    {
        RemoveOdinPlaybackFromPlayer(player);
    }
}

Please check out our guide on user data:

• Understanding User Data

Building does not work anymore after ODIN integration#

Sometimes, you might see these errors after ODIN integration when building your game or app for Mac (or eventually iOS).

Building Library/Bee/artifacts/MacStandalonePlayerBuildProgram/Features/odinsdk-FeaturesChecked.txt failed with output:
Failed because this command failed to write the following output files:
Library/Bee/artifacts/MacStandalonePlayerBuildProgram/Features/odinsdk-FeaturesChecked.txt

UnityEngine.GUIUtility:ProcessEvent (int,intptr,bool&) (at /Users/bokken/buildslave/unity/build/Modules/IMGUI/GUIUtility.cs:189)

Sometimes, they look a bit different, but whenever you get those erros after ODIN integration the following steps might help.

ODIN needs access to your microphone. Apple will show a dialog on macOS and iOS asking users to give permission to that. In this dialog box, a text is shown provided by the app developer outlining why access to the microphone is required.

You need to set this text in the Player Settings. To do that, open the Build window with File -> Build Settings. At the bottom left corner you see a button to the Player Settings. Player Settings can also be found in the Project Settings.

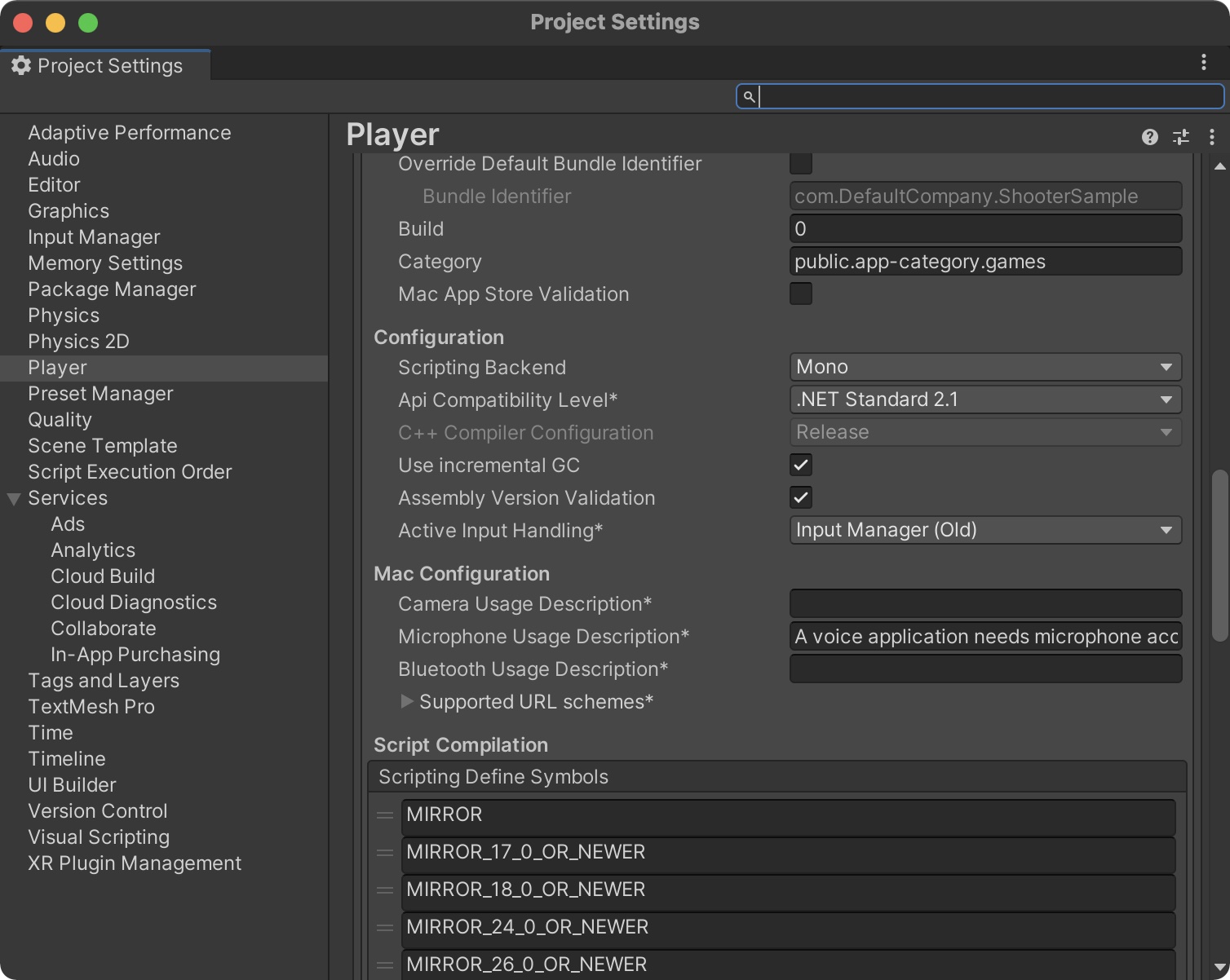

In the Player Settings you’ll find these text entry fields in the Mac Configuration section as shown in this image:

Enter a text in Microphone Usage Description that makes sense for your users so that they understand why that should give access to their microphone.

Does 4Players ODIN support Apple Silicon?#

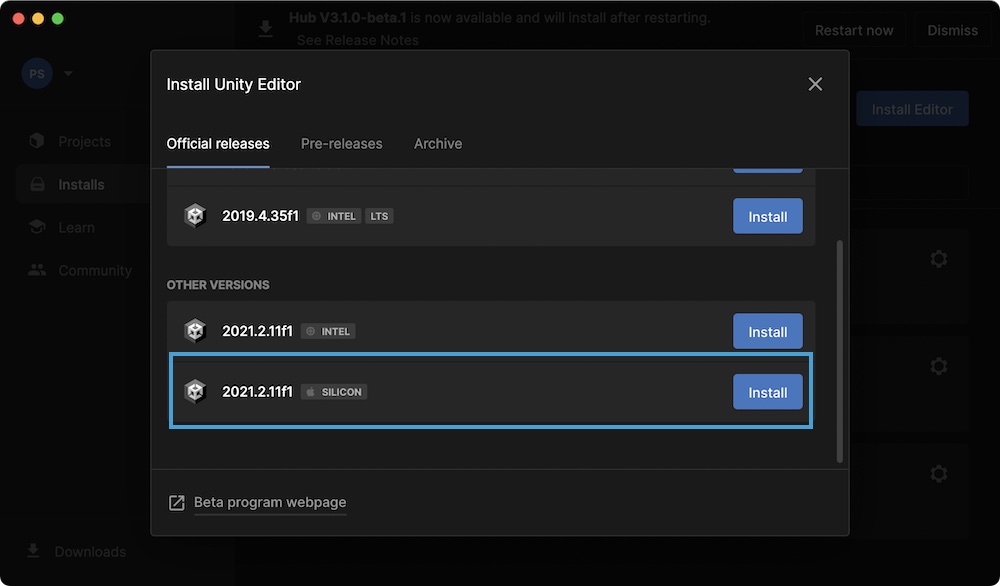

Yes. It does. But its important that you run the Unity Editor with Apple Silicon support. At time of this writing only version 2021.2 and above are available in an Apple Silicon version. Install the Unity Hub in version 3.x to install Apple Silicon Unity editor.

Download the Unity Hub here:

Download Unity Hub
